SKU
6.20DBSBT-DB-145-P16S-WC

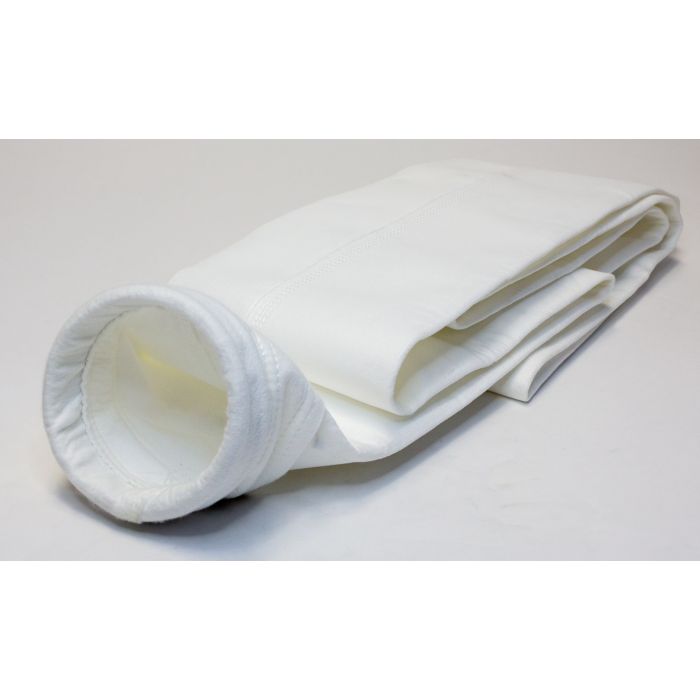

U.S. Air Filtration Polyester Pulse Jet Filter Bag, 6.20 x 145 in

Premium 6.20" Dia x 145" Long Polyester Filter Bag

Reliable Filtration, Maximum Performance

Specifications
Engineered for efficiency, this high-quality polyester felt filter bag delivers exceptional filtration at an unbeatable value. With a durable polyester media known for its superior particle retention and affordability, this filter operates at temperatures up to 275°F, making it a versatile choice for a wide range of industrial applications.
Designed for a precise fit and secure seal, this bag features a double beaded snap band size for a 6.20" tube sheet, a 5.90" diameter body, a 145" length, and a disc bottom with 3" wear cuff for enhanced durability and longevity.

Not sure if this is the right filter for your system? Our expert parts specialists are ready to help! Call us at (888) 221-0312 or chat online for personalized assistance.
$17.55

Buying in bulk?

Get a quote

Same Day Shipping Available

In Stock
Specifications
Part Number 6.20DBSBT-DB-145-P16S-WC
Type Top Load
Filter Media Polyester Felt
Media Weight 16oz
Finish / Membrane Singed
Top Construction Double Beaded Snap Band
Tube Sheet Dia. 6.20"
Bag Diameter 5.90"
Overall Length 145"
Bottom Construction Disc Bottom w/ Wear Cuff
Mean Air Permeability 32 - 39 cfm/ft²/min @ 0.5" H20
Operating Temperature <265°F
Recommeded Maximum Continuous Temperature 265°F
Bag Flat Width 9.26"
Brand U.S. Air Filtration
