Quick Summary
An introduction to shaker filter bag used most commonly in Shaker baghouses. Includes how shaker filter bags work, how they are cleaned, and their most common construction.
How to Clean Shaker Filter Bags
Shaker baghouses are engineered so that filters are hung and tensioned from the top of the unit, and at the bottom they are attached to a tube sheet. Mechanically shaking the filter bags is what cleans them. Shaker baghouses only clean while the system is off-line. Shaker baghouse operation is simple and can be seen in applications where no compressed air is available.
Construction of Shaker Filter Bags
How Shaker Filter Bags Collect Dust
Shaker baghouses collect dust similar to reverse air baghouses. Dust collects on the inside surface of the shaker filter bags, and then clean air exits through the top of the bag. The main difference is how the bags cleaned.
How to Clean Shaker Filter Bags
Shaker baghouses are engineered so that filters are hung and tensioned from the top of the unit, and at the bottom they are attached to a tube sheet. Mechanically shaking the filter bags is what cleans them. Shaker baghouses only clean while the system is off-line. Shaker baghouse operation is simple and can be seen in applications where no compressed air is available.
Construction of Shaker Filter Bags

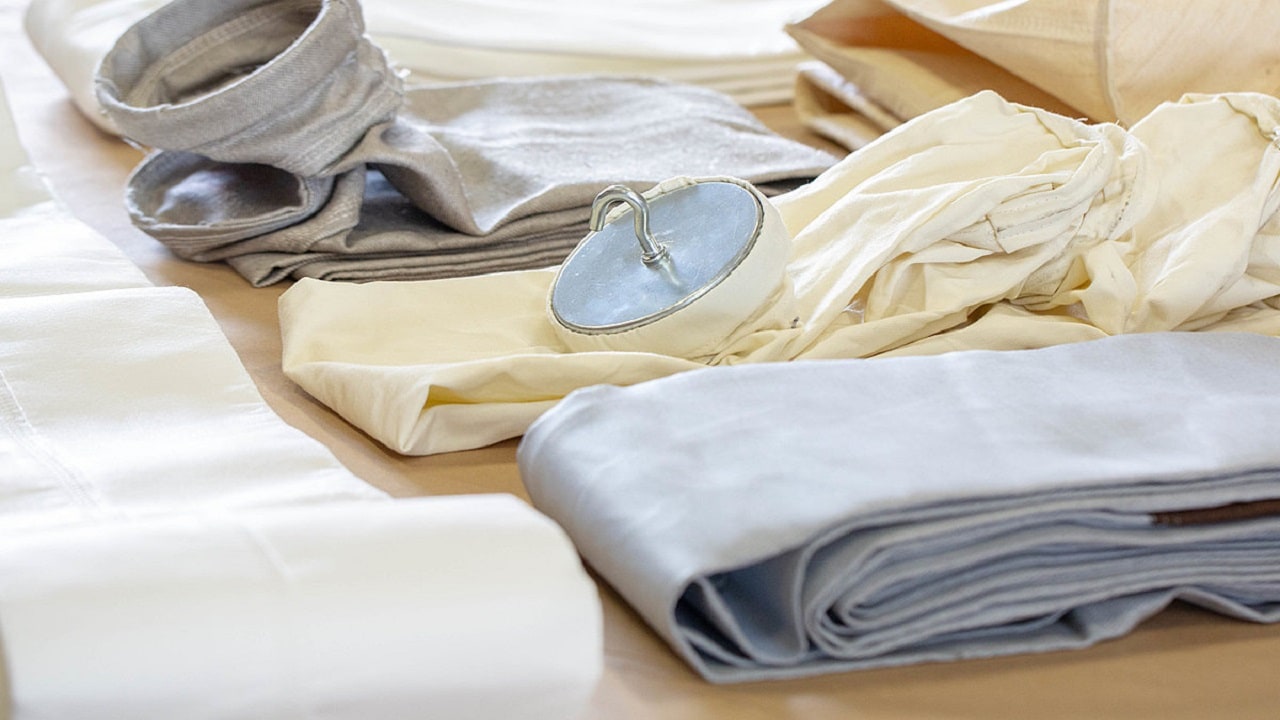

Fabric filter bags used in shaker baghouses are typically constructed with woven or light weight media options like polyester sateen, shaker felt, beane knit, and more. Treatments are dependent on a plant’s application and dust characteristics. The most common top and bottom configurations for shaker baghouses are below.
Most Common Top & Bottom Construction for a Shaker Baghouse
Top Load Baghouse: Grommet Top, Loop Top, Strap Top
Bottom Load Baghouse: Corded Cuff Bottom, Double Beaded Snap Band
If you would like to get a free media recommendation, check out our filter bag media quiz here. There is also a fabric characteristics sheet that you can download below. It takes a closer look at the most common filter bag medias used in the dust collection industry.
Filter Bag Resources
To learn more about how to select the right filter bags, you can download our filter bag guide with the link below. The guide provides resources on key topics such as; dust properties, filter media, finishes and treatments, construction, and air-to-cloth ratio.
Looking to start with the basics? Watch this “Guide to Filter Media” video to learn more about the most common medias used in the industrial dust collection industry.
Are ready to get a set of filters? Check out our online product catalog below. You can also request a quote within 24 hours, call at 888-221-0132, or simply email [email protected]
